Trailer Plans pdf
Build It For Less!

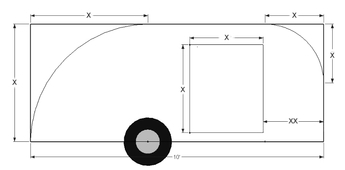

5x8 and 5x10 Teardrop Camp Trailers
We have two teardrop trailer plans available, our Classic Style 5 x 8 Teardrop Trailer and our Benroy Style 5 x 10 Teardrop Trailer. With the plans, step by step building instructions and materials list, both sets of plans contain over 60 pages!
Although most people choose to use one of the little bolt together trailers for the frame or other prefabricated trailer, we also included the plans and building instructions for the frame in case you want to build your own. Something you won't find with our competitors.
About Our Teardrop Trailers
Our 5 x 8 and our 5 x 10 Teardrop Camp Trailers have enough room for a queen size mattress that only weigh between 575 - 650 lbs. loaded. And we show you how we saved hundreds of dollars when we built our teardrop trailers. Of course as time goes by prices of materials increase, but we did put in the information on where to get the best prices on the materials so that you will be able to build your teardrop trailer at the lowest possible cost.
Years ago when I decided to build my first teardrop trailer, I had purchased several different sets of plans and I was unable to use any of them. They were either incomplete, badly copied old magazine article, or just plain unsafe.
After becoming frustrated, I spoke to a friend who also designs and builds trailers, and between the two of us we came up with the design and set of plans for our 5 x 8 teardrop trailer, then as we built our first teardrop trailer, we wrote out step by step, easy to understand instructions including the measurements, sketches, images and drawings.
Since then we have built a number of these little camp trailers, and our latest 5 x 10 teardrop trailer which provides even more room.
And fortunately for you, as we continued building these trailers, we learned a few tricks along the way, so we updated the instructions and included some tips and tricks we learned to give you the best information possible.

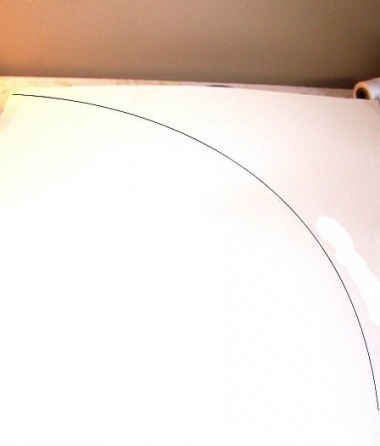

Drawing The Profile
One of the concerns that a number of our customers seemed to have was their ability to draw the profile. So we tackled the problem and we came up with a fool proof technique that will enable anyone to draw a perfect, smooth curve for the profile every time, even if you can't draw a straight line. And you don't need any special tools period. We believe its better then a template and most all of our customers agree.
Table Of Contents
Disclaimer
Introduction
Materials List
Section 1 - Building The Floor
Section 2 - Building The Walls
Section 3 - Placement Of The Roof Spars
Section 4 - Flooring And Interior
Section 5 – Assembling The Walls
Section 6 – Building The Interior Cabinets
Section 7 - Building The Galley Cabinets
Section 8 - Installing The Roof Spars
Section 9 - The Ceiling Panel (Interior)
Section 10 - The Wiring
Section 11 -The Insulation And Roof
Section 12 - Finishing The Exterior
Section 13 - Building The Hatch
Section 14 - Finishing The Door(s)
Section 15 - Installing The Battery Box & Battery
Section 16 - Installing The Roof Vent
Section 17 - The Finishing Touches
Main Features
1. Very easy to build with our step by step instructions.
2. Features room for a queen size mattress.
3. Build the teardrop using one of the little kit trailers for the frame is included.
4. Safe on the road, good balance, no swaying or bouncing etc.
5. You can very easily customize about any part of this trailer.
6. Includes Wiring Diagram and instructions.
7. Over 60 pages of information.
8. Includes the trailer frame plans as well if you would rather build your own frame.
9. We show you how we saved hundreds of dollars on the build.
Our trailer plans have been put into high quality pdf format and you will receive them shortly after your payment is complete.
We use Stirpe Payment Proccessing, the same trusted payment gateway used by Amazon, Lyft, Google, Zillow, Shopify and more.
